2D Barcode Scanner

Model:U2

Xiamen Peite Electronic Technology Co., Ltd. mainly produces thermal printers and 2D Barcode Scanner. It is a manufacturer and factory with 11 years of experience. The wireless barcode scanner is a portable device that can be connected to a computer or mobile device via wireless means to scan and identify various barcodes quickly and accurately. The Peit barcode scanner is equipped with high-standard accessories and user-friendly design, which can provide stable and efficient scanning experiences for various scenarios.

문의 보내기

제품 설명

2D Barcode Scanners are being used more and more in both work and daily life, such as for package scanning, supermarket scanning, and item pickup code scanning, etc. When choosing a scanner to purchase, you need to consider the type of barcode to be scanned (one-dimensional, two-dimensional or QR code), whether it is wireless or wired connection, the scanning distance (short, medium or long), and whether it can be compatible with your existing scanning system or integration system. Xiamen Peit is a manufacturer of 2D scanning guns, offering a variety of styles and types of scanning guns. Welcome to inquire.

Product Features

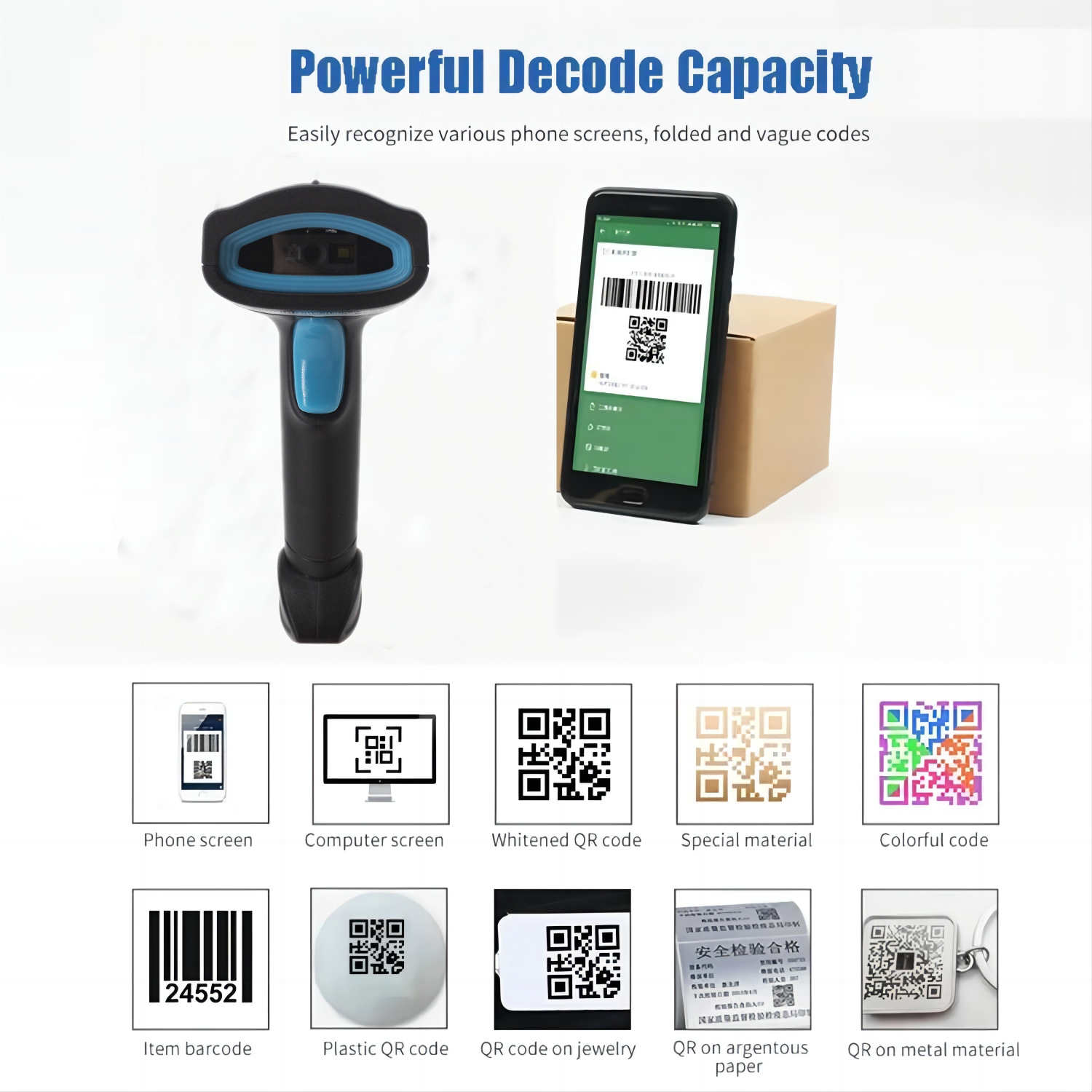

High-sensitivity scanning engine

It adopts an advanced two-dimensional image scanning engine, which can quickly and accurately read 1D/2D barcodes, QR codes, barcodes on paper screens, as well as blurry barcodes.

Durable hardware structure

Equipped with a high-strength anti-drop shell and a sturdy scanning window, it can effectively resist daily collisions and wear and tear, ensuring long-term stable use.

Stable and flexible connection

Supports three connection modes: USB wired/2.4G wireless/Bluetooth. Equipped with standard data cables and wireless receivers, plug-and-play, with strong compatibility.

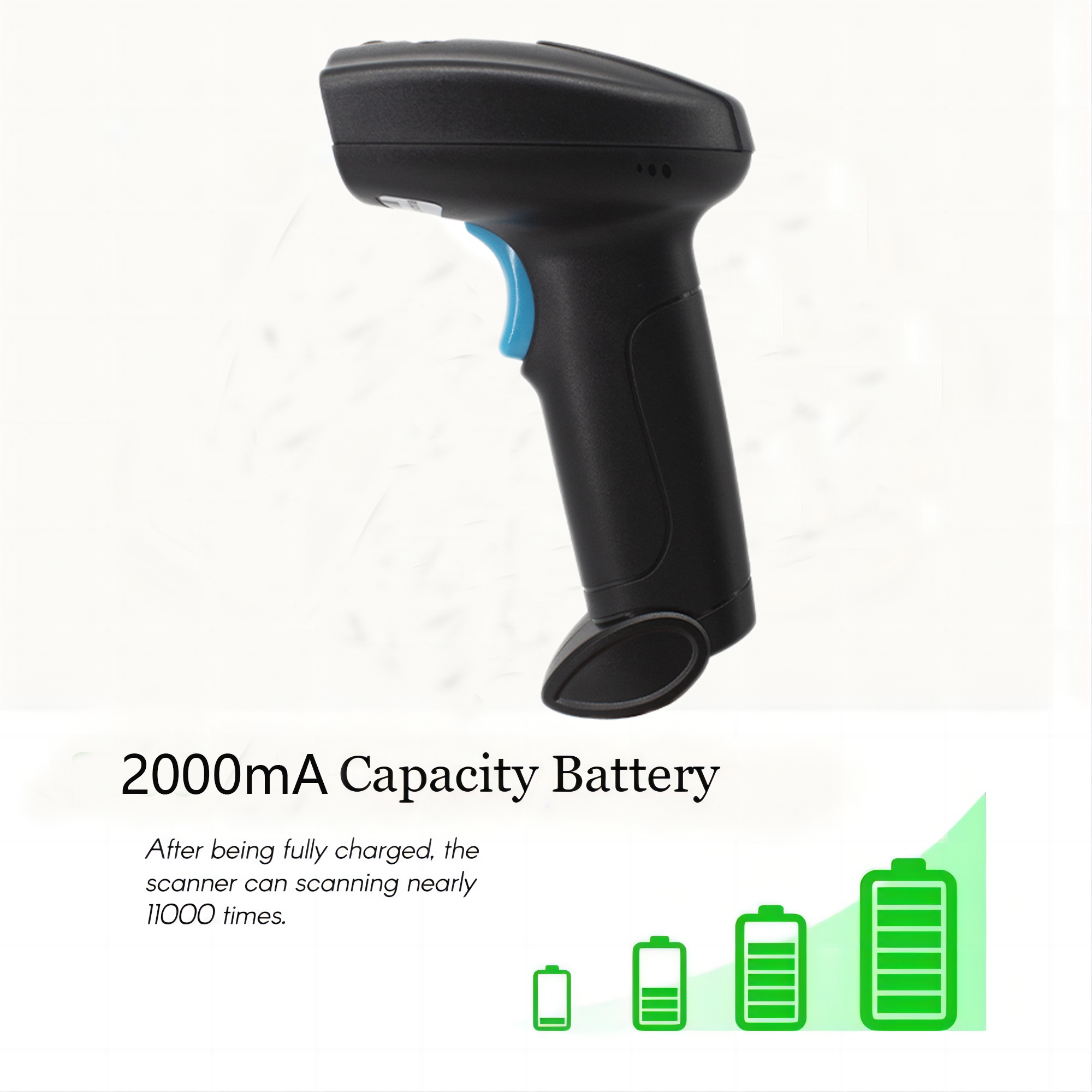

Large-capacity rechargeable battery

Built-in large-capacity rechargeable battery, long battery life, supports long-term continuous scanning, with low battery reminder and charging protection functions.

Complete standard accessories

Standardly equipped with charging cable, data cable, wireless receiver, user manual and stand. Ready to use upon opening the box, convenient for installation and placement.

Widely compatible

Qr and barcode scanners Compatible with Windows, Android and iOS systems, widely used in supermarkets, retail, logistics, warehousing, catering and medical industries.

Product Specifications

The input voltage	DC 5 volts ± 0.25 volts
Power.	1.60 watts (working);0.40 watts (standby).
Current.	320 mAh (working);80 mAh (standby)5 x/-10% VDC s 350 mA
Resolution.	752 × 480 pixels
Scan angle	± 60 degrees, ± 40 degrees, ± 42 degrees (left, right, back, round).
The type of decoding	1d:UPC-A, UPC-E1, UPC-E0, EAN-13, EAN-8, ISBN (Bookland EAN), ISSN, Code 39, Code 39 full ASCII, Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Codabar (NW7), Code 128, ISBT 128, Code 93, Code 11 (USD-8), MSI/Plessey, UK/Plessey, UCC/EAN 128, China Post, China Finance, GS1 DataBar (formerly RSS) variants
	2D:PDF417, MicroPDF417, QR code, DataMatrix
How to prompt	Buzzer,LED
The system interface	RS-232 serial port;USB keyboard;USB imaginary serial port
How it was triggered	Manual.
Appearance size	Long × width× height: 160mm × 66mm × 90mm
Weight.	128g(without cable).
Cable standard	Straight line,1.65 meters
The type of interface	One-in-one line
Shell material	PC+ABS
Temperature	0°C ~ 50°C (working); -40°C ~ 60°C (storage)
Humidity	5% to 95%(no condensation).
How to set it up	Manual (scan to set barcodes in turn)
Resolution	3.5mil(high density series),1mil s 0.0254mm
Read depth of view	3.5mil:Code128(9 characters).	15mm—35mm
	5mil:Code39(20 characters).	33mm—77mm
	13mil:UPC (12 characters).	17mm—150mm
	20mil:Code39(5 characters).	55mm—195mm
	6.7mil:PDF417(20 characters).	25mm—90mm
	10mil:DM(20 characters).	15mm—115mm
	20mil:QR(20 characters).	9mm—175mm
Level of security	EMC Electromagnetic Compatibility:EN55022,EN55024Electrical safety:EN60950-1Waterproof and dust-proof seal rating:IP54Seismic capacity:5 or more times 1.5 meters of height fell to the cement floor

Application

In the warehousing and logistics area, staff members carry qr code code scanner and move among the shelves, quickly scanning the barcodes of the boxes. The system updates the inventory and location information in real time. Each scan precisely records the flow of goods, making the complex warehousing management clear and efficient.

In the courier stations, scanning readers are indispensable tools. Couriers scan the shipping labels of packages one by one to confirm the collection, transfer, and delivery status, and the data is simultaneously uploaded to the backend. Whether it's large packages or small parcel items, the scanning gun supports the smooth operation of the entire logistics chain in an efficient and accurate manner.

FAQ

1.Are you a manufacturer? What is the MOQ?

We are the professional thermal printer and 1d 2d barcode scanner manufacturer with full production line. Sample order 1-2 pcs printers are also welcomed.

2.Can you do customize?and how about add our logo?

Yes, ODM/OEM are available. MOQ: 100pcs, we can silk print your logo for free.

3.Can you provide driver and software?

Yes, we can support the driver of Mac/Ios/Windows, SDK, android/ios testing app.

4.Which barcodes can be supported for scanning?

Our barcode scanner supports 1D+2D barcode and QR code scanning, and it is a wireless scanner. It can be connected and used with computers, mobile phones, tablets, POS systems and integrated systems.
